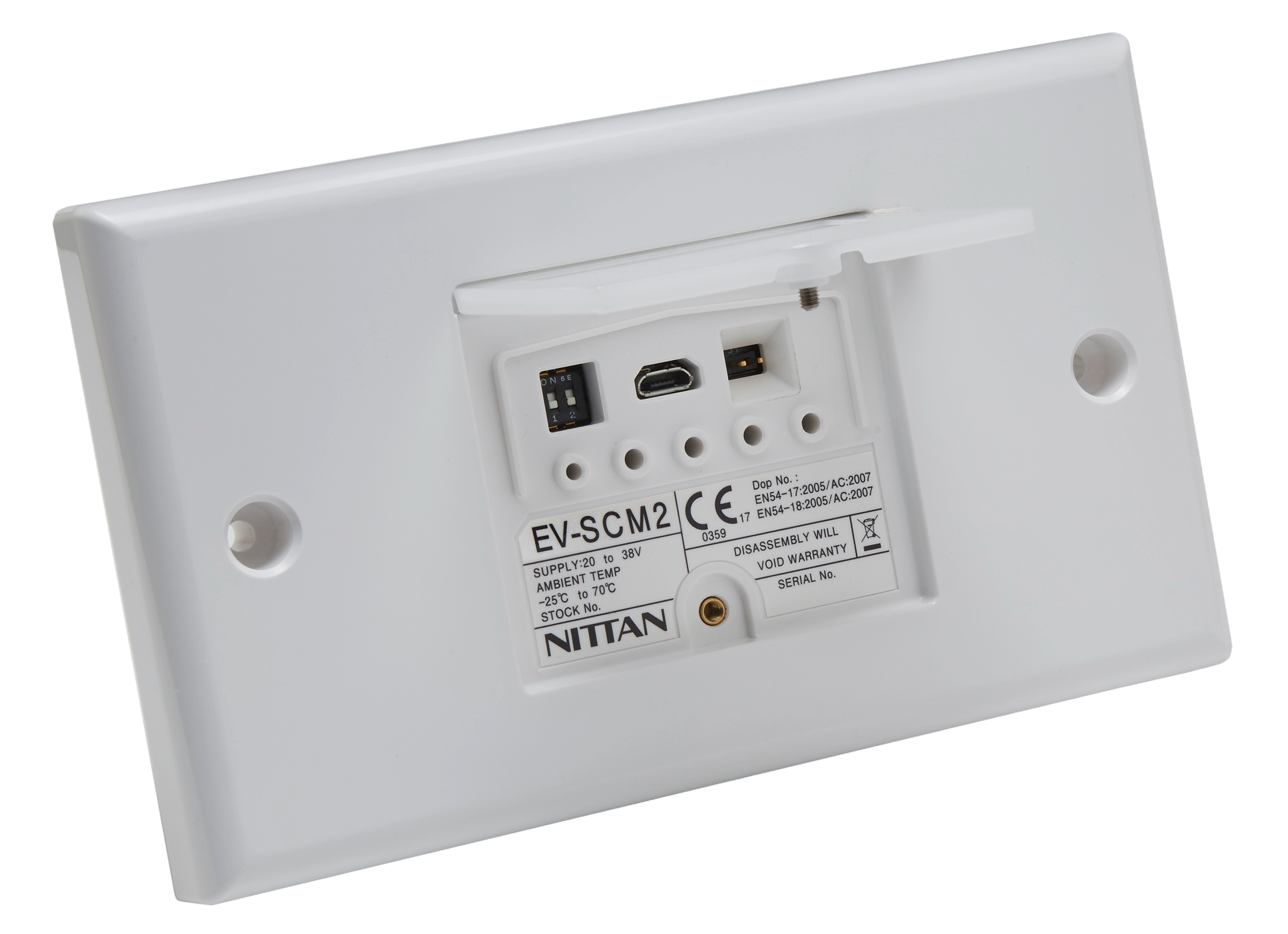

EV-SCM2

Sounder Control Module
Part No: F16-82270

Nittan’s extensive range of Evolution Analogue Modules are designed to monitor and control third party equipment.

EV-SCM2 is a Dual Output Sounder Control Module, with PSU Fault Input and integral –ve line Short Circuit Isolator compatible with Evolution Analogue Addressable system devices. The Module includes a setting option to improve synchronisation of Sounder / Beacon products. LEDs are provided to Indicate Output active, Fault and Isolator Open. The module is designed to fit the range of standard UK 2 Gang electrical enclosures, including Surface & Flush mount options.
pi_evo_add_ev_whitemod


  • 2 x 1A@30Vdc Output
  • Input for EN54 part 4 PSU fault
  • Integral -ve Isolater
  • EEPROM Addressed (Programmer)
  • Housing fits standard UK 2 Gang pattress box

    •
    *Note:
    +ve and -ve isolator styles cannot be mixed on a system.
    Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
    Contact Nittan Technical Support for more details and information on panel compatibility.

    document_download

    Operating Voltage20-38 Vdc
    Operating CurrentQuiescent: 740μA
    Alarm: 3.1mA
    Current in Short Circuit15mA
    StandardEN54-17: 2005 / AC: 2007
    EN54-18: 2005 / AC: 2007
