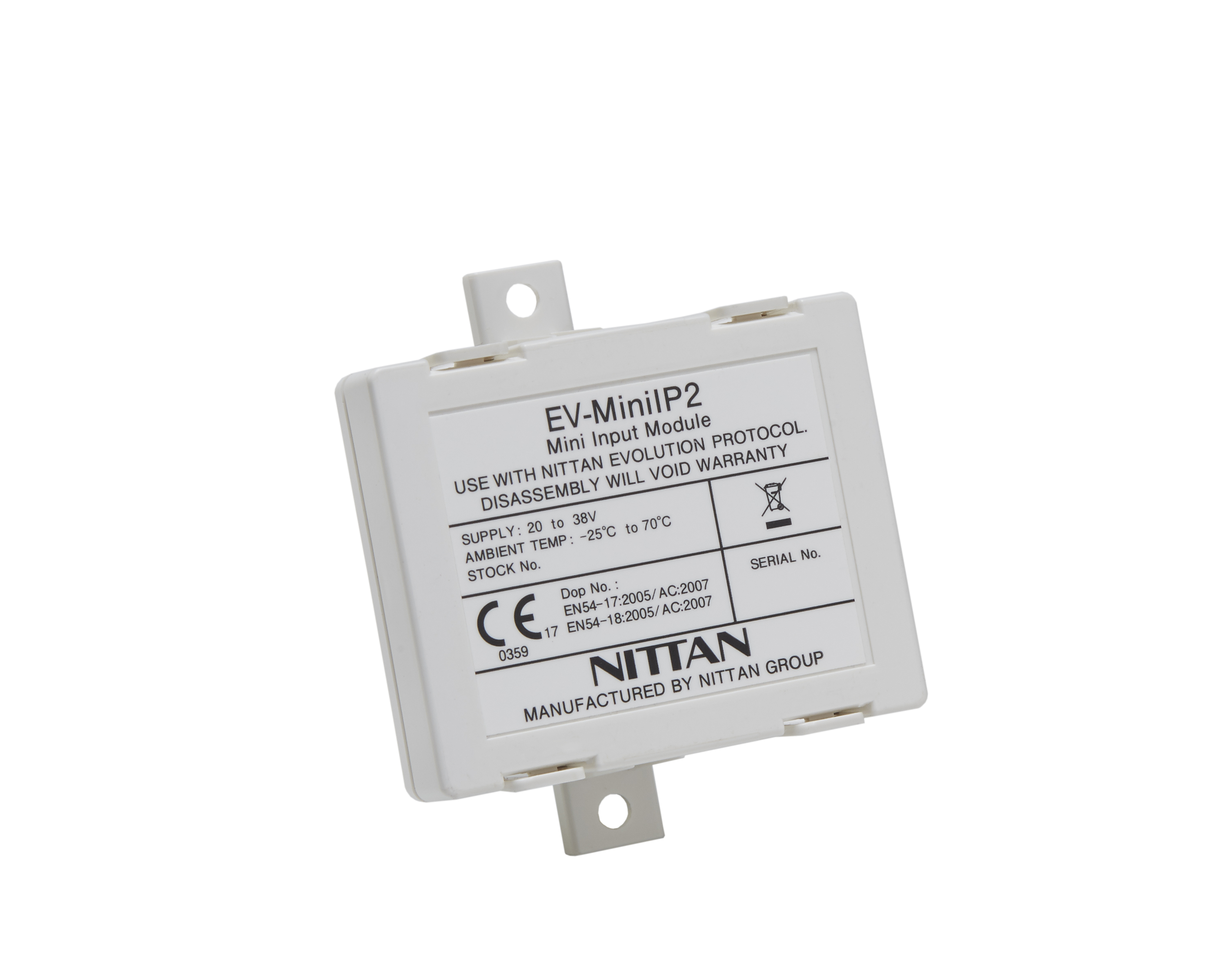

EV-Mini IP2

Mini Input Module
Part No: F16-82250

Nittan’s extensive range of Evolution Analogue Modules are designed to monitor and control third party equipment.

EV-Mini IP2 is a Single Input Module, with integral –ve line Short Circuit Isolator compatible with Evolution Analogue Addressable system devices. The module is compact and suitable for mounting within other equipment, such as Firebeam or Aspirating detectors. A remote LED output is provided for Input status indication.
pi_evo_add_ev_whitemod


  • Loop Powered
  • 1 x Class B Input
  • Integral -ve Isolater
  • Housing fits standard UK 1 Gang pattress box
  • Remote Indicator Output

    •
    *Note:
    +ve and -ve isolator styles cannot be mixed on a system.
    Not compatible with Advanced MxPro4 (Mx4000) Panel. Please use Non-SCI model.
    Contact Nittan Technical Support for more details and information on panel compatibility.

    document_download

    Operating Voltage20-38 Vdc
    Operating CurrentQuiescent: 690μA
    Alarm: 3.3mA
    Current in Short Circuit15mA
    StandardEN54-17: 2005 / AC: 2007
    EN54-18: 2005 / AC: 2007
