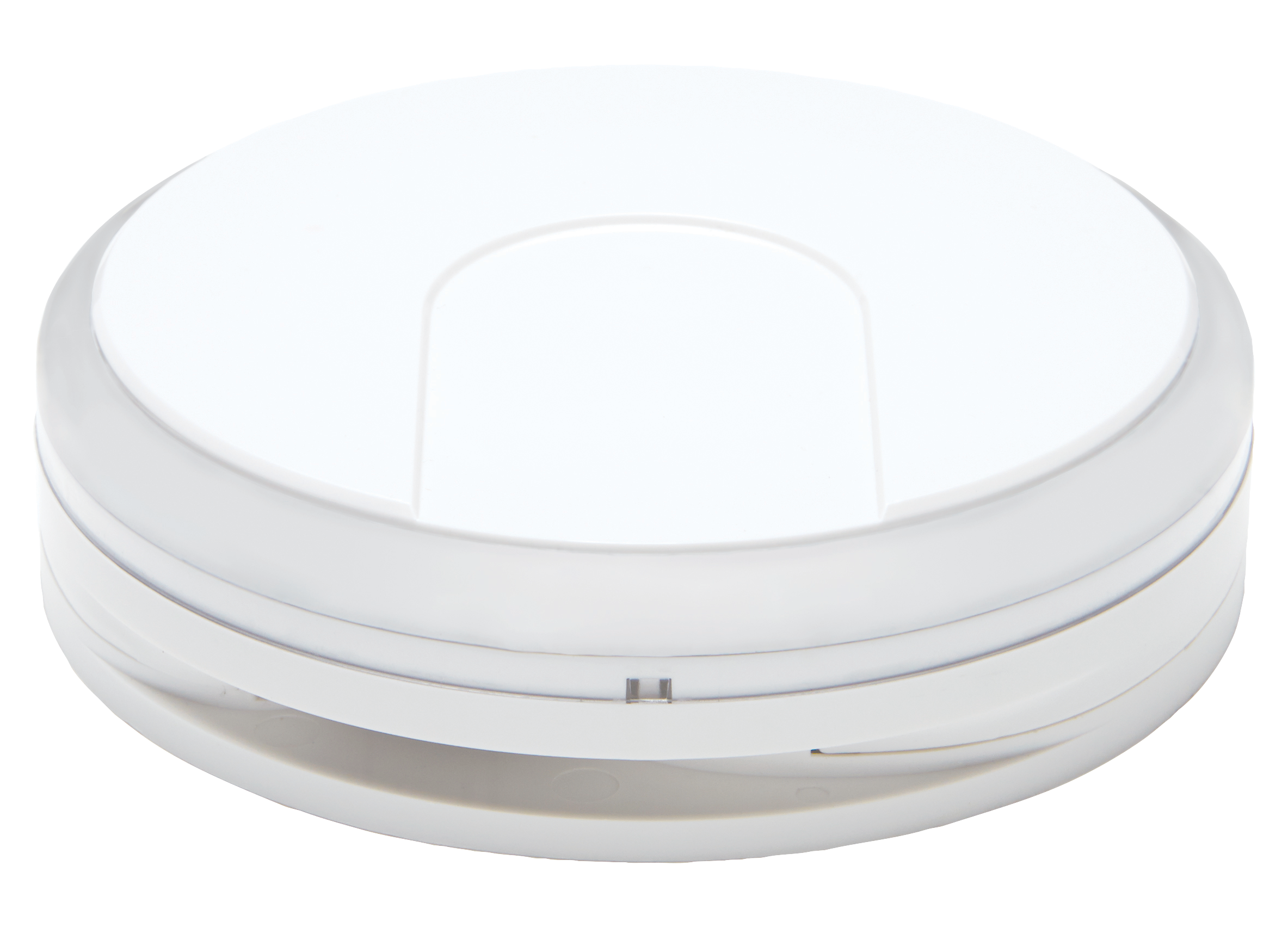

EV-AV2 Sounder Beacon

Nittan Europe > Evolution Analogue Addressable > EV-AV2 Sounder Beacon

Sounder Beacon
Part No: F14-85012

The EV-AV2 provides a simple and highly flexible solution to meeting the DDA requirements by providing both sound and flashing light to alert occupants to a fire. Available as both integral base or low profile wall mounting version. The Base version has a fully integrated detector base.

Features

  • Combined Sounder and Beacon
  • Evolution FSK protocol
  • EEPROM Addressed (Programmer)
  • Stand alone device, not for use with Detector
Operating Voltage 24 – 38 Vdc
Operating Current Quiescent: 200μA
Alarm: SDR and BCN (Low O/P) active 9.5 mA
Alarm: SDR and BCN (High O/P) active 14 mA
Standard EN54-3:2001 + A1:2002 + A2:2006

Downloads
